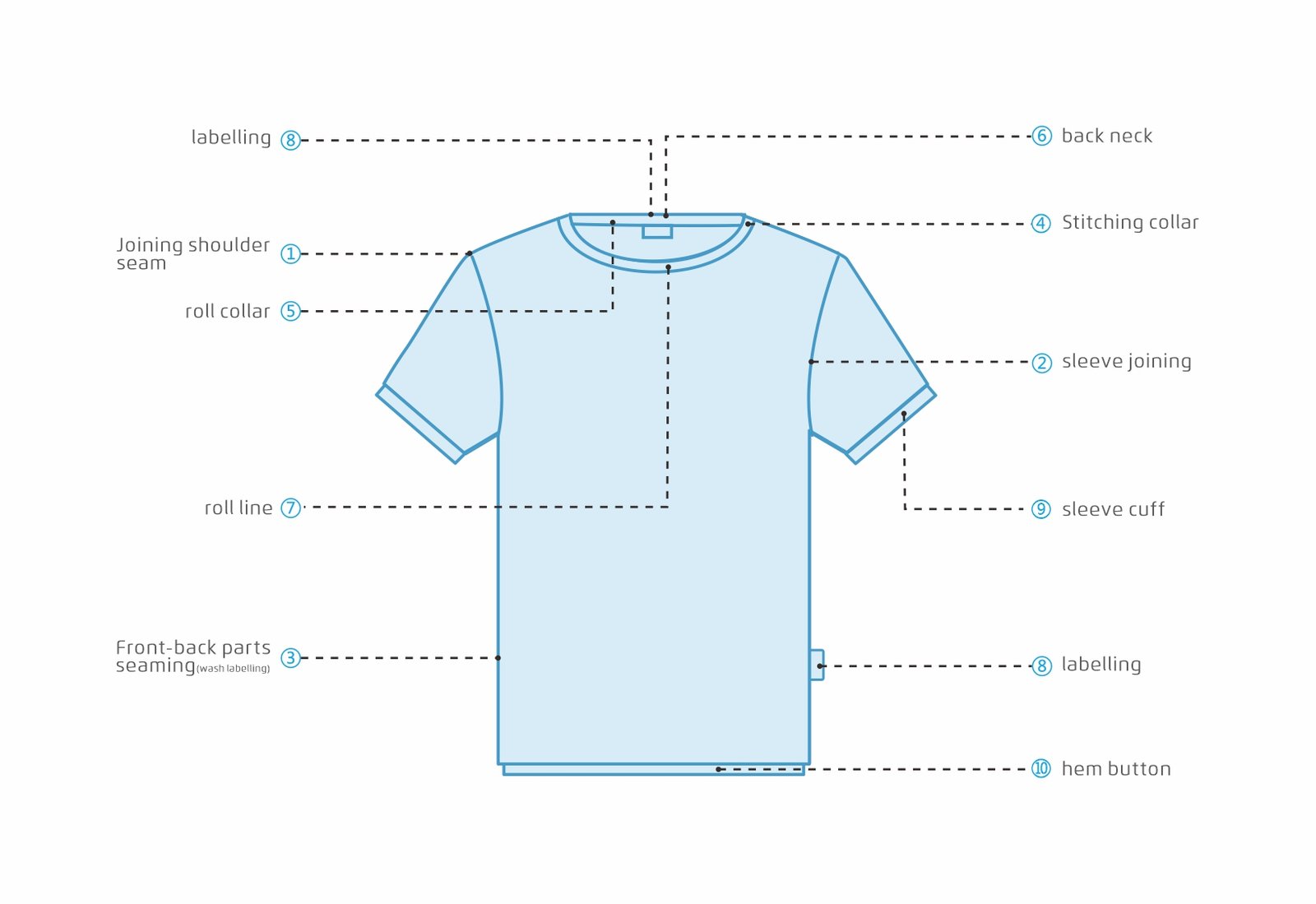

Round collar T-shirt

Style features: ribbed collar, double-needle rolled hem at the bottom hem and cuff edges;
Accessories: ribbed collar with embossing, size label, logo, washing label;
Overall process: cutting – sewing – ironing – quality control – hangtag – packaging.

Application - Round Neck T-shirt

APPLICATION

SEWING
SEQUENCE
EQUIPMENTS
DEMO
1Stitching collar
①Stitching collar
Auto collar attaching
AT515 Auto collar attaching
2sleeve cuff
②sleeve cuff
Interlock machine
K6A-UT-35AC left-cut
3labelling
③labelling
craft Lockstitch/pattern machine
M5 In-line template machine
4roll line
④roll line
Lockstitch machine
A.M.H Unlock the Potential of All Fabrics
5back neck
⑤back neck
Interlock machine
W4-DI-02BB around collar Interlock machine
6roll collar
⑥roll collar
Auto collar machine
JK-797TDI-FR09E Auto collar machine
7Front-back parts seaming(wash labelling)
⑦Front-back parts seaming(wash labelling)
Four thread overlock
C7 Urus Full speed cross seam
8sleeve joining
⑧sleeve joining
Four thread overlock
C7 Urus Full speed cross seam
9Joining shoulder seam
⑨Joining shoulder seam
Four thread overlock
C7 Urus Full speed cross seam
10hem button
⑩hem button
Auto hem machine
AT510 Auto cylinder rolling hem machine

Product View

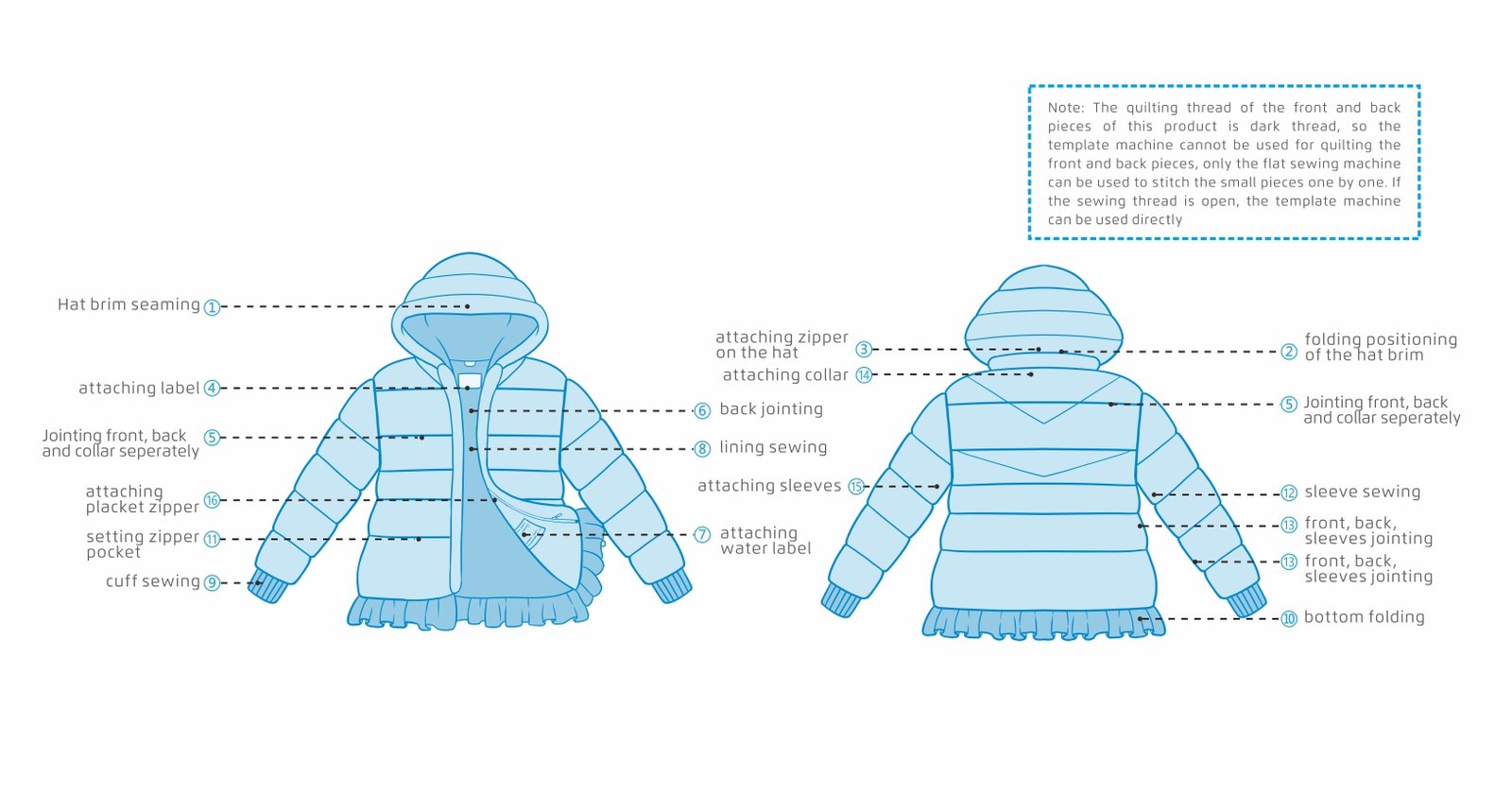

Down jacket main process

Style features: hooded style, hem folding, front and back piece dark thread sewing.
Accessories: duck/goose down, zipper, size label, trademark, washing label

Application - Round Neck T-shirt

APPLICATION

SEWING
SEQUENCE
EQUIPMENTS
DEMO
1Stitching collar
①Stitching collar
Auto collar attaching
AT515 Auto collar attaching
2sleeve cuff
②sleeve cuff
Interlock machine
K6A-UT-35AC left-cut
3labelling
③labelling
craft Lockstitch/pattern machine
M5 In-line template machine
4roll line
④roll line
Lockstitch machine
A.M.H Unlock the Potential of All Fabrics
5back neck
⑤back neck
Interlock machine
W4-DI-02BB around collar Interlock machine
6roll collar
⑥roll collar
Auto collar machine
JK-797TDI-FR09E Auto collar machine
7Front-back parts seaming(wash labelling)
⑦Front-back parts seaming(wash labelling)
Four thread overlock
C7 Urus Full speed cross seam
8sleeve joining
⑧sleeve joining
Four thread overlock
C7 Urus Full speed cross seam
9Joining shoulder seam
⑨Joining shoulder seam
Four thread overlock
C7 Urus Full speed cross seam
10hem button
⑩hem button
Auto hem machine
AT510 Auto cylinder rolling hem machine

Product View

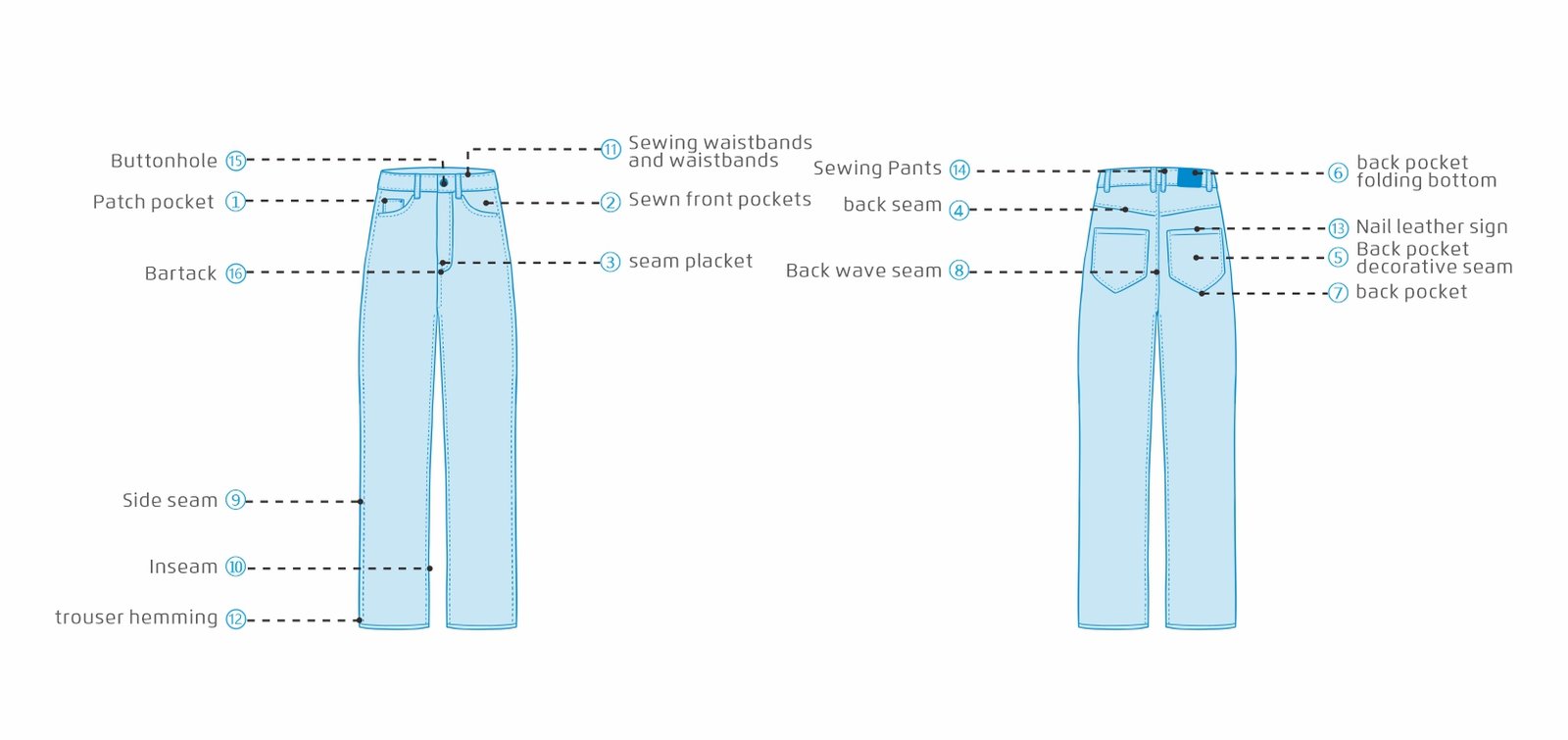

jeans main process

Application - Jeans Pants

APPLICATION

SEWING
SEQUENCE
EQUIPMENTS
DEMO
1Sewn front pockets
①Sewn front pockets
Electric Shank button/ press button machine
S2220 Front Pocket Hemming Machine / JK-58450J-405E Double-needle computerized lockstitch machine
2seam placket
②seam placket
front pocket folding bottom machine Double needle machine
S2410VF1 automatic placket decorative thread sewing machine / JK-58450J-405E Double-needle computerized lockstitch machine
3back seam
③back seam
feed-off-arm machine
S2261HP 3-needle feed off straight-arm chainstitch sewing machine / JK-T9280D-73-2PL direct drive feed-off-arm machine
4back pocket decorative seam
④back pocket decorative seam
Computer pattern machine
JK-T3020-D programmable eletronic pattern sewing machine
5back pocket folding bottom
⑤back pocket folding bottom
Automatic pocket bottom folding machine
B700 Automatic pocket edge hemming machine
6back pocket
⑥back pocket
Automatic pocket attaching machine
B2501 Automatic pocket attaching machine
7Back wave seam
⑦Back wave seam
feed-off-arm machine
S2261HP 3-needle feed off straight-arm chainstitch sewing machine / JK-T9280D-73-2PL direct drive feed-off-arm machine
8Side seam
⑧Side seam
Automatic side seam overlock machine
V800.1 Automatic side seam overlock machine / JK-T798TE-5 Five Thread Variable Top Feed Computerized Overlock Machine
9Inseam
⑨Inseam
feed-off-arm machine
S2261HP 3-needle feed off straight-arm chainstitch sewing machine / JK-T9280D-73-2PL direct drive feed-off-arm machine
10Sewing waistbands and waistbands
⑩Sewing waistbands and waistbands
Automatic waistbands machine
V300 SERIES automatic trouser waist sewing machine
11trouser hemming
⑪trouser hemming
trouser hemming machine
S3022BHE Trouser leg hemming machine
12Nail leather sign
⑫Nail leather sign
computer pattern machine
JK-T2210-F1 programmable eletronic pattern sewing machine
13Sewing Pants
⑬Sewing Pants
Auto Sewing Pants machine
S4650 Automatic trouser looping Machine
14Bartack
⑭Bartack
computer bar tacking machine
JK-T1900GHK computerized bartacking machine
15Buttonhole
⑮Buttonhole
Computerized round head buttonhole machine
JK-T9820-01-D eletronic eyelet buttonholing machine
16Patch pocket
⑯Patch pocket
Double needle machine
JK-58450J-405E Double-needle computerized lockstitch machine / JK-818 Button attaching machine

Product View

Main Process

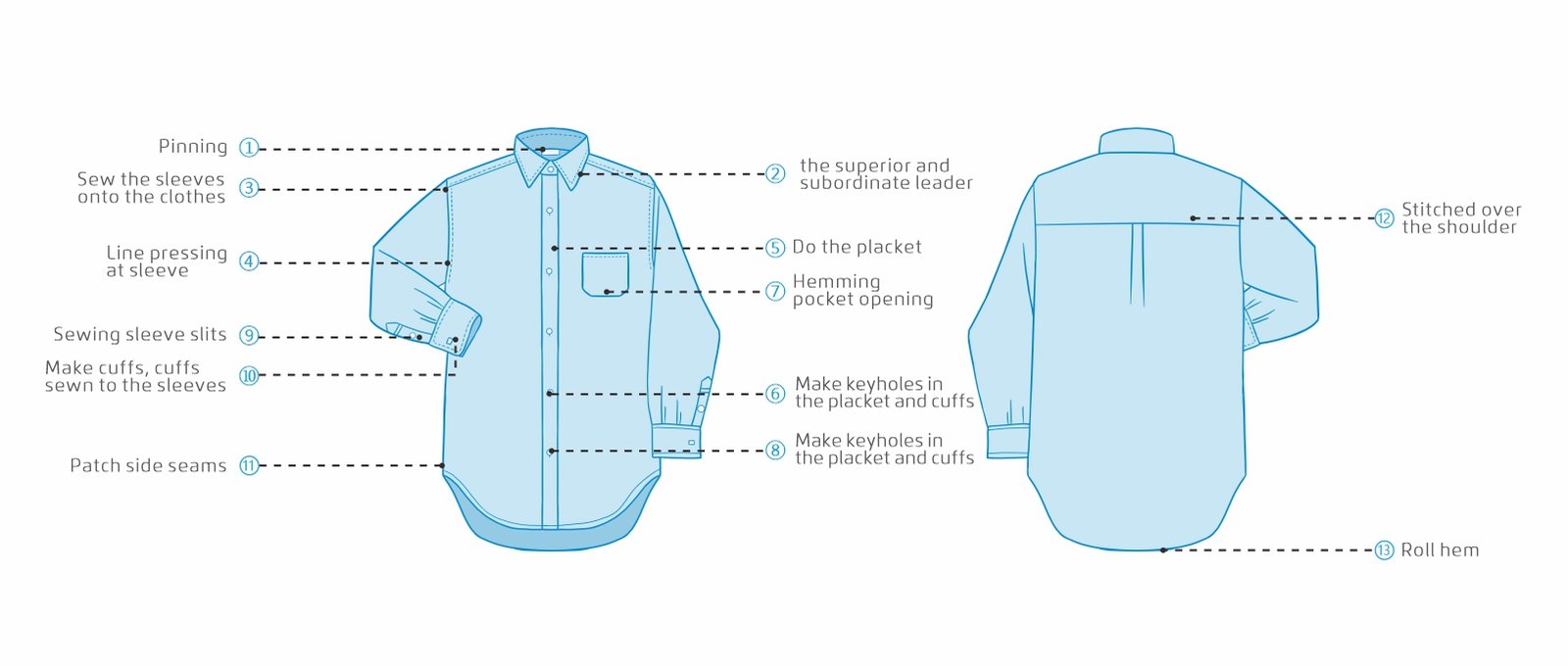

Application - Shirt

APPLICATION

SEWING
SEQUENCE
EQUIPMENTS
DEMO
1Pinning
①Pinning
auto sewing machine
GL11 Collar label automatic cutting and folding sewing machine
2he bright line of sleeve and collar
②he bright line of sleeve and collar
auto sewing machine
MSA01 Collar and cuff topstitch machine
3Sew the sleeves onto the clothes
③Sew the sleeves onto the clothes
chain flat sewing machine
JK-8558G-1 semi-dry machine head
4Line pressing at sleeve
④Line pressing at sleeve
chain flat sewing machine
JK-8558G-1 semi-dry machine head
5Do the placket
⑤Do the placket
Multi-needle machin lockstitch
JK-8009VCDI direct drive multi-needle A5E large operation space computerized lockstitch
6the superior and subordinate leader
⑥the superior and subordinate leader
template machine auto sewing machine
M5 In-line template machine
7Make keyholes in the placket and cuffs
⑦Make keyholes in the placket and cuffs
auto sewing machine
MA04 automatic buttoholes indexer MA17 Automated Buttonholes and Button for Cuffs
8Hemming pocket opening
⑧Hemming pocket opening
auto sewing machine
M2412 automatic pocket hemming machine
9Make keyholes in the placket and cuffs
⑨Make keyholes in the placket and cuffs
auto sewing machine
MA06 Button indexer MA17 Automated Buttonholes and Button for Cuffs
10Sewing sleeve slits
⑩Sewing sleeve slits
auto sewing machine
UAM04 Sleeve placket setter
11Roll hem
⑪Roll hem
lockstitch
A.M.H Unlock the Potential of All Fabrics
12Stitched over the shoulder
⑫Stitched over the shoulder
template machine
M5 In-line template machine
13Patch side seams
⑬Patch side seams
feed-off-the-arm
JK-T9270D-12-2PL direct drive feed-off-arm machine
14Make cuffs, cuffs sewn to the sleeves
⑭Make cuffs, cuffs sewn to the sleeves
template machine auto sewing machine
M5 In-line template machine
15Patching pocket
⑮Patching pocket
template machine auto sewing machine
M5 In-line template machine

Product View

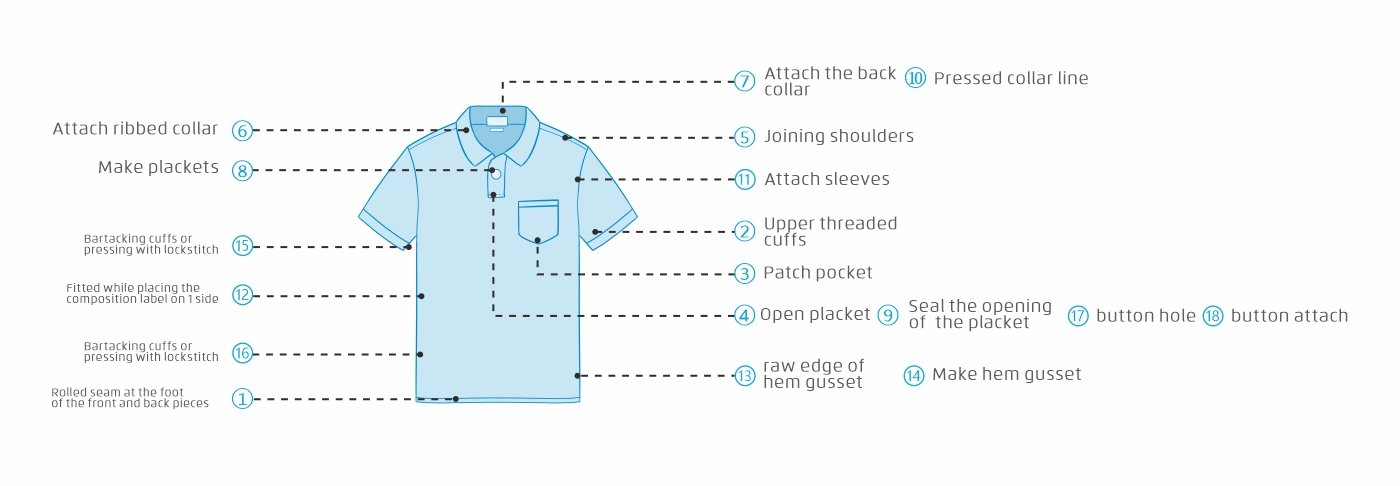

POLO T-SHIRT making process steps

Application - Polo T-shirt

APPLICATION

SEWING
SEQUENCE
EQUIPMENTS
DEMO
1Make hem gusset
①Make hem gusset
Automatic hem sewing machine
template machine
AT520 Automatic hem sewing machine
M5 In-line template machine
2Bartacking cuffs or pressing with lockstitch
②Bartacking cuffs or pressing with lockstitch
Bartacking
JK-T1900GSK No need to cut the thread
3Bartacking cuffs or pressing with lockstitch
③Bartacking cuffs or pressing with lockstitch
Bartacking
JK-T1900GSK No need to cut the thread
4raw edge of hem gusset
④raw edge of hem gusset
Four thread overlock
C7 Urus Full speed cross seam
5Fitted while placing the composition label on 1 side
⑤Fitted while placing the composition label on 1 side
Four thread overlock
Auto sewn-in lable machine
C7 Urus Full speed cross seam
Gl21 Auto sewn-in lable machine
6Attach sleeves
⑥Attach sleeves
Four thread overlock
C7 Urus Full speed cross seam
7Pressed collar line
⑦Pressed collar line
lockstitch
A.M.H Unlock the Potential of All Fabrics
8Seal the opening of the placket
⑧Seal the opening of the placket
Four thread overlock
C7 Urus Full speed cross seam
9Make plackets
⑨Make plackets
lockstitch
A.M.H Unlock the Potential of All Fabrics
10Attach the back collar
⑩Attach the back collar
lockstitch
A.M.H Unlock the Potential of All Fabrics
11Attach ribbed collar
⑪Attach ribbed collar
Four thread overlock
C7 Urus Full speed cross seam
12Joining shoulders
⑫Joining shoulders
Four thread overlock
C7 Urus Full speed cross seam
13Open placket
⑬Open placket
Automatic Placket Setting Machine
template machine
JK-T5878-58G Automatic Placket Setting Machine
M5/80A smart process lockstitch
14Patch pocket
⑭Patch pocket
Auto pocket machine
template machine
JK-2512 Auto pocket machine
M5 In-line template machine
15Upper threaded cuffs
⑮Upper threaded cuffs
Four thread overlock
C7 Urus Full speed cross seam
16Rolled seam at the foot of the front and back pieces
⑯Rolled seam at the foot of the front and back pieces
Automatic Roll Bottom Hemming Machine
A.M.H Unlock the Potential of All Fabrics
17button hole
⑰button hole
Bartacking
JK-T1790G No need to cut the thread
18button attach
⑱button attach
button attaching
JK-T1903GR Automatic buckle studs

Product View

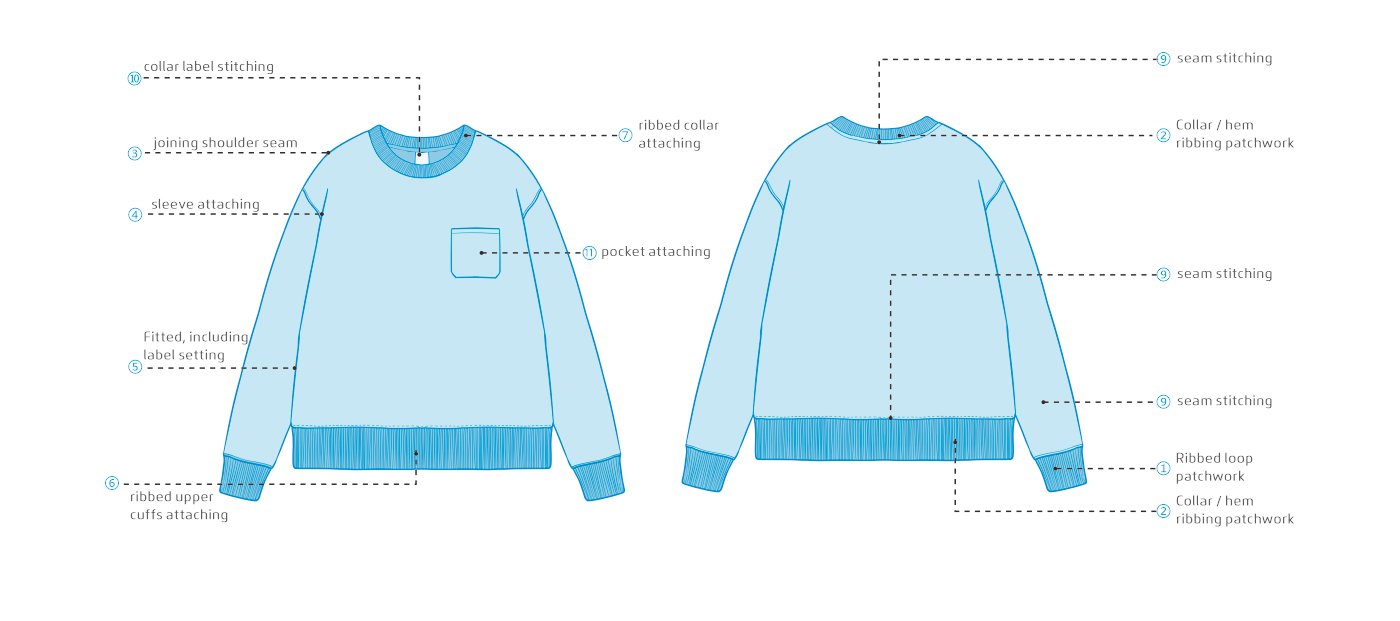

Crew neck sweater production process steps

Application - Sweatshirt

APPLICATION

SEWING
SEQUENCE
EQUIPMENTS
DEMO
1Ribbed loop patchwork
①Ribbed loop patchwork
Automatic knitting machine
AT540 Automatic threaded sleeves machine
2pocket attaching
②pocket attaching
Automatic pocket attaching machine
JK-2512 automatic pocket attaching machine / M5 In-line template machine
3collar label stitching
③collar label stitching
lockstitch machine
A.M.H Unlock the Potential of All Fabrics
4seam stitching
④seam stitching
interlock machine
K6 super fast intelligent sewing machine
5ribbed hemming
⑤ribbed hemming
Four thread overlock machine
C7 Urus Full speed cross seam
6ribbed collar attaching
⑥ribbed collar attaching
Automatic knitting machine
797T/FR09 automatic collar attching overlock machine
7ribbed upper cuffs attaching
⑦ribbed upper cuffs attaching
Four thread overlock machine
C7 Urus Full speed cross seam
8Fitted, including label setting
⑧Fitted, including label setting
Four thread overlock machine
C7 Urus Full speed cross seam
9sleeve attaching
⑨sleeve attaching
Four thread overlock machine
C7 Urus Full speed cross seam
10joining shoulder seam
⑩joining shoulder seam
Four thread overlock machine
C7 Urus Full speed cross seam
11Collar / hem ribbing patchwork
⑪Collar / hem ribbing patchwork
lockstitch machine
A.M.H Unlock the Potential of All Fabrics

Product View

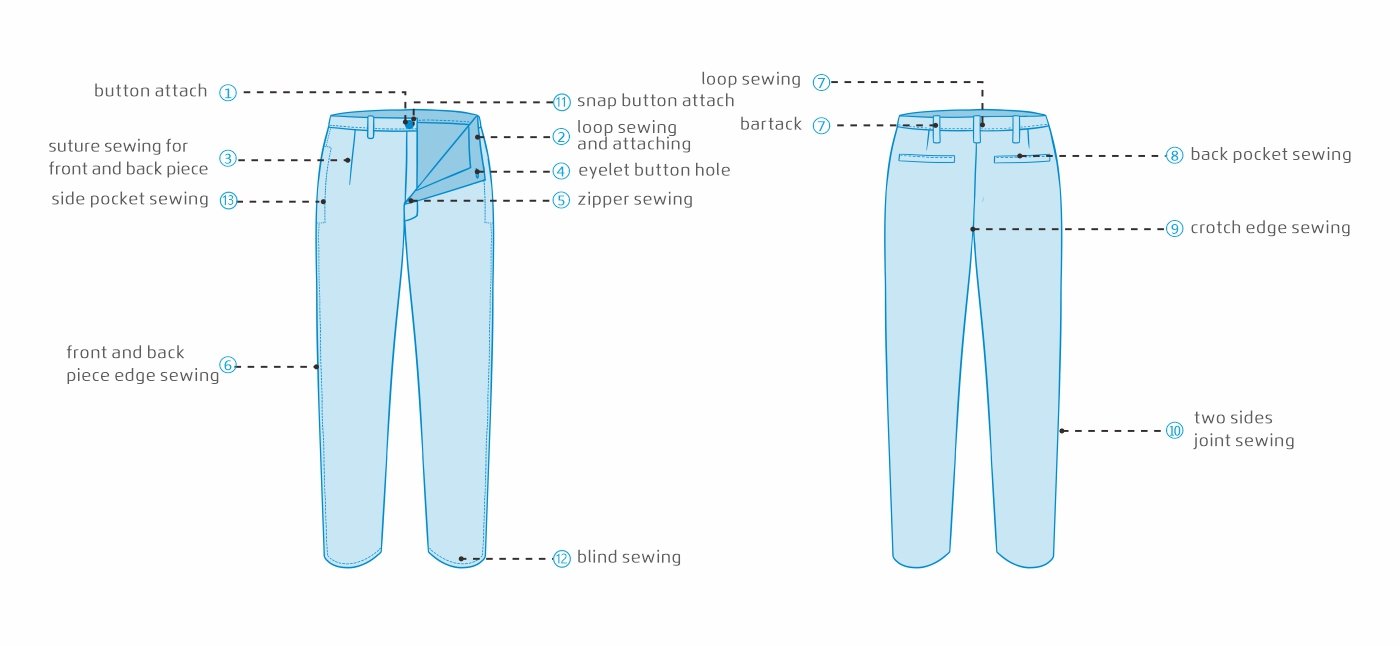

Men’s suit pants sewing process

Product View

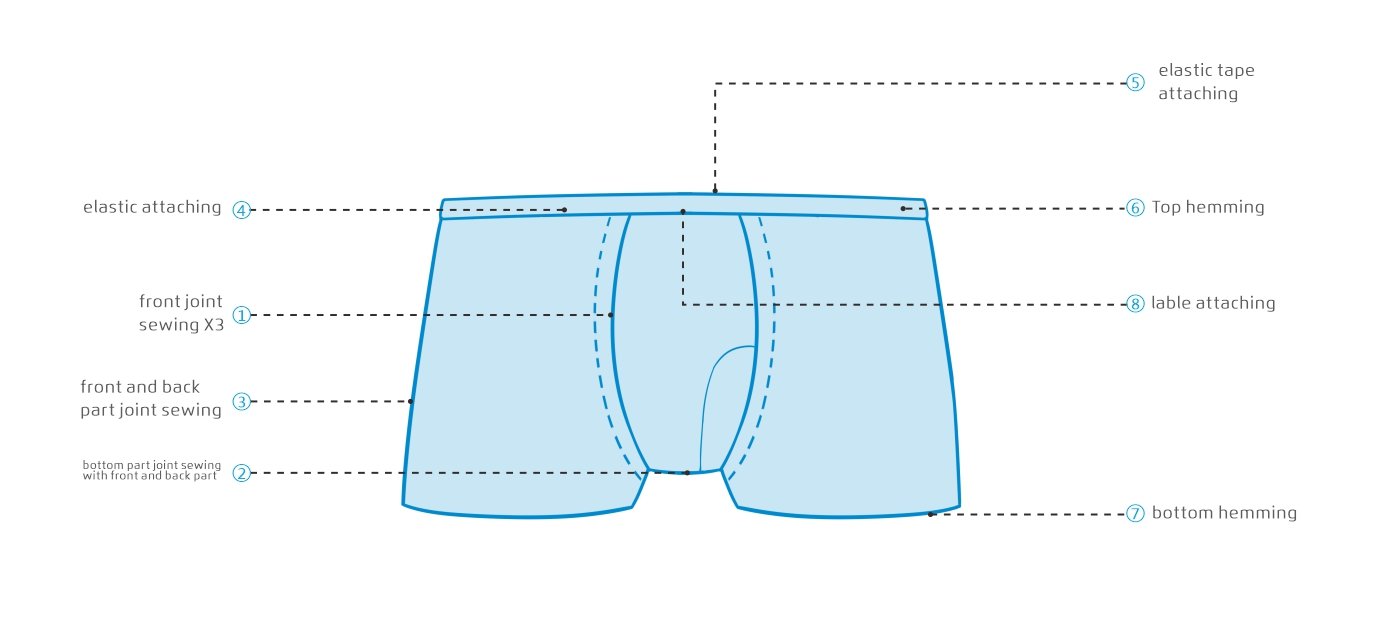

Main process steps of men’s underwear

Application - Men Underwear

APPLICATION

SEWING
SEQUENCE
EQUIPMENTS
DEMO
1elastic tape attaching
①elastic tape attaching
Overlock/Interlock
AT530 Automatic Elastic Banding Machine
2lable attaching
②lable attaching
lockstitch
GL11 Automatic collar attaching machine
3bottom hemming
③bottom hemming
Interlock
K6 super fast intelligent sewing machine
4Top hemming
④Top hemming
Interlock
K6-UTL-01GBx356/PL-S2 super fast intelligent sewing machine
5elastic attaching
⑤elastic attaching
elastic attaching machine
JK-T1906GPA-3-D(touch screen) automatic rubber banding machine
6front and back part joint sewing
⑥front and back part joint sewing
Overlock
C7 Urus Full speed cross seam
7bottom part joint sewing with front and back part
⑦bottom part joint sewing with front and back part
Overlock
C7 Urus Full speed cross seam
8front joint sewing X3
⑧front joint sewing X3
Overlock
C7 Urus Full speed cross seam

Product View

Main process

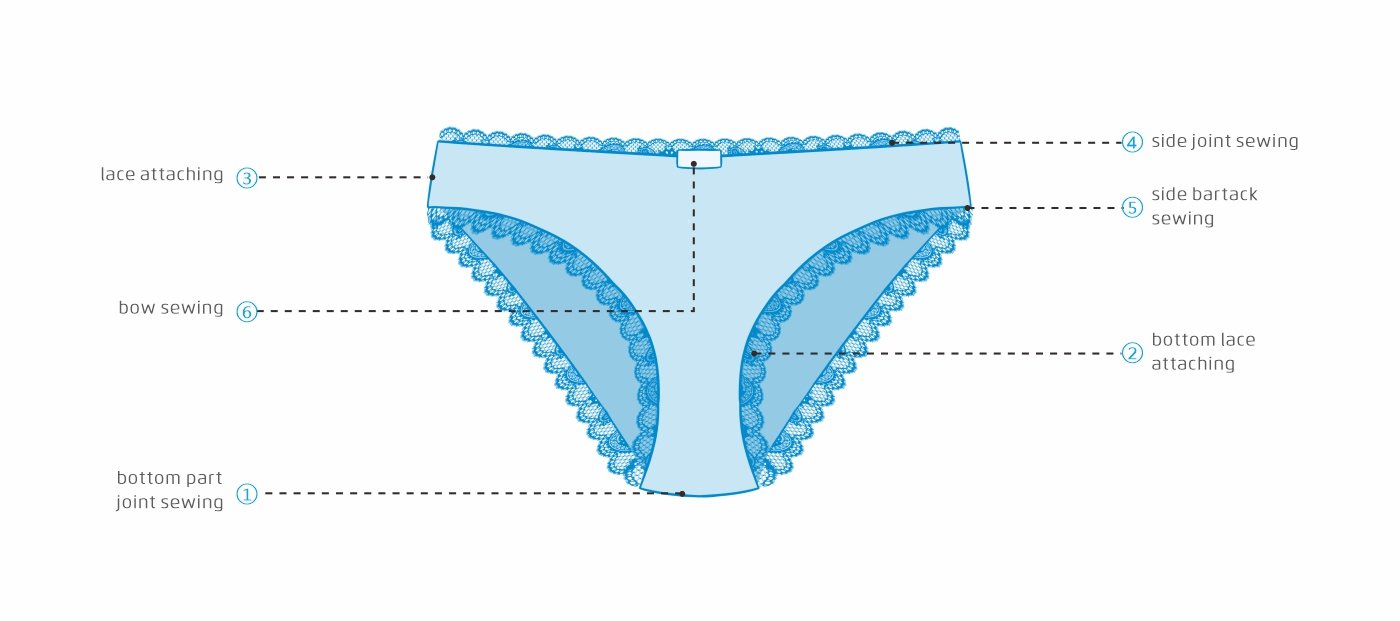

Application - Women Underwear

APPLICATION

SEWING
SEQUENCE
EQUIPMENTS
DEMO
1bottom lace attaching
①bottom lace attaching
interlock
W4-D-05CB flat-bed interlock machine with right-side cutter
2side joint sewing
②side joint sewing
Zigzag machine
JK-2284B computerized direct drive zigzag sewing machine
3bow sewing
③bow sewing
bartacking machine
JK-T1900GSK computerized bartacking machine
4side bartack sewing
④side bartack sewing
bartacking machine
JK-T1900GSK computerized bartacking machine
5lace attaching
⑤lace attaching
Overlock stitching
C7 Urus Full speed cross seam
6bottom part joint sewing
⑥bottom part joint sewing
overlock
C7 Urus Full speed cross seam

Decades of Excellence in Sewing Technology

Quick Links

Categories

Quick Contacts

Panchsheel Corporation Private Limited. All right Reserved. Powered By Tech Samadhan
